China Wood Rubber CO2 Laser Engraving Cutting Machine Multipurpose wholesale

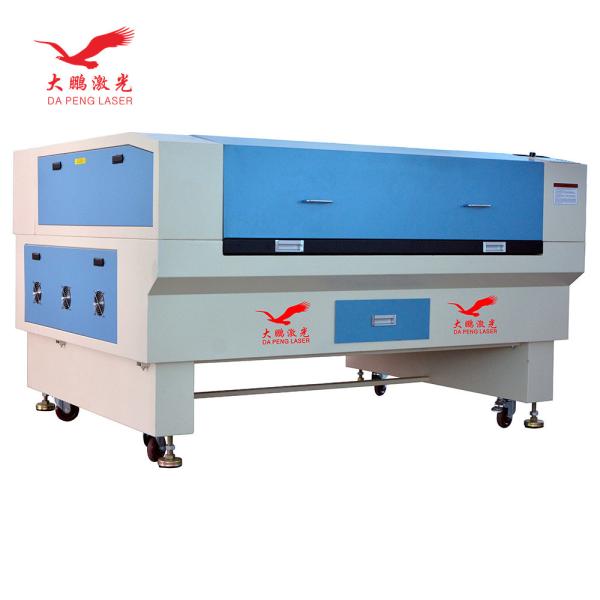

Wood Rubber CO2 Laser Engraving Cutting Machine Multipurpose

Name: Wood Rubber CO2 Laser Engraving Cutting Machine Multipurpose
Brand: DAPENG
Price: 1000 USD

Ask Latest Price

Video Channel

Place of Origin :Guangdong, China

Brand Name :DAPENG

Packaging Details :Plywood box

Supply Ability :50 sets per month

Price :USD1000-3500

Model Number :CO2-100

Certification :CE, ISO

MOQ :1 set

Payment Terms :T/T

Delivery Time :5-10 days

Application :LASER CUTTING

Applicable Material :Acrylic, Glass, Leather, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal, Sheet Metal, Acrylic Fabric Cloth

Condition :New

Laser Type :CO2

Cutting Area :1600mm*1000mm or 1300mm*900mm or 900mm*600mm

Cutting Speed :120 m/min, 0-800mm/s

Graphic Format Supported :AI, PLT, DXF

Cutting Thickness :6mm

CNC or Not :Yes

Cooling Mode :WATER COOLING, Water cooling system

Weight (KG) :320 KG

Warranty :1 Year

Machinery Test Report :Provided

Video outgoing-inspection :Provided

Warranty of core components :1.5 years

Feature :Automated Loading

Product Name :Glass Tube CO2 Laser Cutting Machine

Power :80W/100W/130W/150W

Moving System :Inline slide guide/External slide guide (optional)

Resseting positioning accuracy :0.1mm

Power supply :220V+-10%,50HZ

Work Platform :Blade/Honeycomb/Grid (According to material)

Keyword :CO2 Laser Cutting Machine

Port :China or Shenzhen Ports

Contact Now

Add to Cart

View Product Description

Product Description

CE Wood Acrylic Plywood Rubber 60W 80W 100W 130W 1610 CO2 Laser Cutting Machines for Laser Engraver System

Wood Rubber CO2 Laser Engraving Cutting Machine Multipurpose

Specification

Product Paramenters

Model	Working Size	Dimension	Weight	Z Axis Stroke
0604	600*400mm	13609201070mm	200kg	optional
0906	900*600mm	145011001070mm	320kg	optional
1309	1300*900mm	196017301120mm	400kg	optional
1325	1300*2500mm	353021801270mm	850kg	optional
1610	1600*1000mm	216017001100mm	560kg	optional
Series	CO2 Cutting&engraving Machine
Laser Power	60w/80w/100w/130w/150w/180w/200w
Engraving Speed	0-1000mm/s
Min Engraving Size	English Letter:1.0mm*1.0mm
Highest Scanning Precision	4000DPI
Cutting Speed	0-1000mm/s
Cutting Thickness	0-30mm
Positioning Accuracy	≤0.1mm
File Format	DST/DXF/AI/PLT/BMP/CDR,etc
Cooling Way	Water Cooling
Drive System	Leadshine Stepper Motor+Stepper Driver
Machine Structure	Covered and protected
Power Supply	110V/220V,50HZ/60HZ
Working Environment	Temperature:0-45,Humidity 5-95%

Sample

Materials	Engrave	Cut	Materials	Engrave	Cut
Wood	✔	✔	Wood Veneer	✔	✔
Acrylic	✔	✔	Fiberglass	✔	✔
Cloth	✔	✔	Plastic	✔	✔
Leather	✔	✔	Cork	✔	✔
Paper	✔	✔	Corian	✔	✔
Delrin	✔	✔	Marble	✔	✔
Mat Board	✔	✔	Anodized Aluminum	✔	/
Melamine	✔	✔	Painted Metals	✔	/
Mylar	✔	✔	Tile	✔	/
Pressboard	✔	✔	Glass	✔	/
Rubber	✔	✔	Coated Metals	✔	/
Twill	✔	✔	Ceramics	✔	/
Power	60W	80W	100W	130W	150W
wood	5.5mm	8.5mm	10.5mm	11.5mm	13.5mm
plywood	4.5mm	8.5mm	10.5mm	11.5mm	13.5mm
leather	2.5mm	3.5mm	4.5mm	5.5mm	6.5mm
acrylic	9mm	13mm	17mm	20mm	23mm
pvc	2.5mm	3.5mm	4.5mm	5.5mm	6.5mm
pleixglass	3.5mm	7.5mm	9.5mm	11.5mm	14.5mm
plastic	1.5mm	2.5mm	3.5mm	4.5mm	5.5mm
rubber	1.5mm	2.5mm	3.5mm	4.5mm	5.5mm
fabric	1.5mm	2.5mm	3.5mm	4.5mm	6.5mm
bamboo	1.5mm	2.5mm	3.5mm	4.5mm	5.5mm
paper	0.5-5mm	0.5-5mm	0.5-5mm	0.5-5mm	0.5-5mm

Features:

Product Description
This co2 engraving and cutting series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.

Application Industries
Laser Engraving cutting machine has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures etc.

Advantage
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may
have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we
have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import brand, which ensure the long time performance and accuracy.
8. The transforming belt have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.

Cutting Samples: Wood,paper, leather, cloth, organic glass, resin,acrylic,woolens, plastic, rubber, ceramic tile, crystal, bowler, bamboo.

Applicable Industry: 1. Engraving beautiful patterns and words such as wood, bamboo. Ivory, bone, leather, marble, shell. 2. Mainly used in large plastic character cutting, color plate engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving etc. 3. Leather clothing processing industry: can engraving and cutting complex patterns on genuine synthetic leather, woolens, clothing ,furnishing, glove, handbag ,model and Aircraft Model, etc.

Company Profile

Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.

Our Workshop

Why Choose US

Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.

Laser Welding Machine Team

Laser Cutting Machine Team

Oversea Marketing Team

Our Exhibition

Our Certificates

ISO

Packing & Delivery

We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.

FAQ:

Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
